Fixed inclinometer

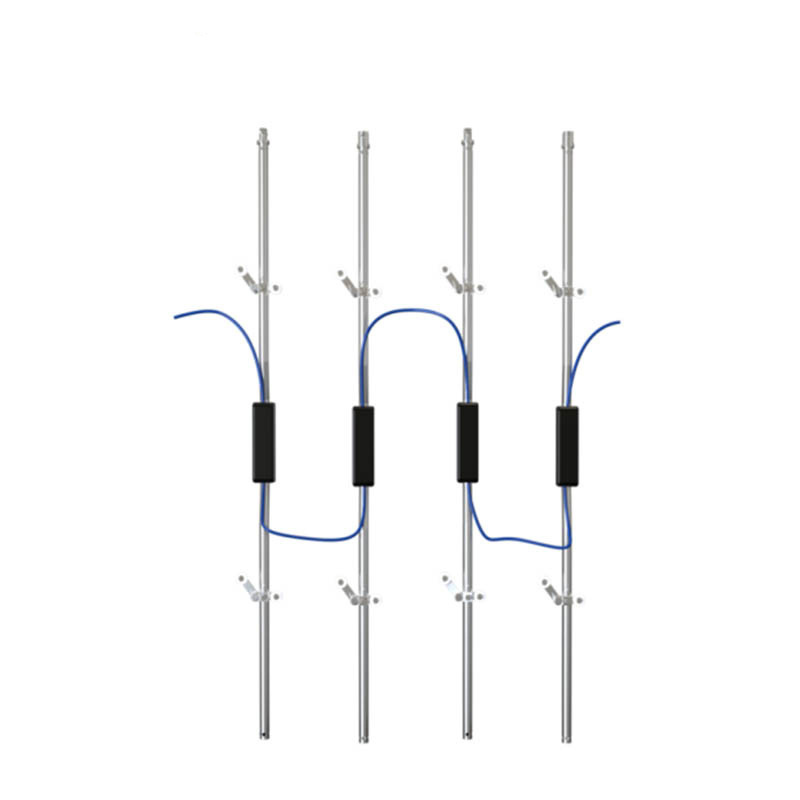

Fixed inclinometer

Model:FT-DL1

Brand:fengtu

Fixed inclinometer is widely used to measure the incline Angle and displacement of hydraulic structures and rock masses such as concrete DAMS, faceplate DAMS, earth-rock DAMS, etc.

Product details

1.Fixed inclinometer product introduction

Fixed inclinometer is widely used to measure the incline Angle and displacement of hydraulic structures and rock masses such as concrete DAMS, faceplate DAMS, earth-rock DAMS, etc.This type of fixed inclinometer is a fixed inclinometer with ultra-large range, ultra-low power consumption and ultra-high precision. It is mainly used for long-term online measurement of deep displacement (angle) changes in inclinometer holes. The magnetic water weir meter measurement system can intelligently identify parameters, intelligently diagnose faults, and seamlessly connect cloud platforms and mobile phones.

2. Fixed inclinometer product features

1. Accurately measure 3-axis inclination, acceleration, temperature, and voltage;

2. Ultra-low power consumption reduces the burden on the power supply system;

3. Ultra-large range, can be used for ultra-large deformation monitoring application scenarios;

4. The communication interface adopts the standard RS485 interface, which can be directly connected to DTU, serial port server or other data acquisition instruments. The integration is very convenient and up to 128 units can be connected in parallel;

5. The communication protocol adopts the standard MODBUS protocol, which is convenient for protocol docking and can freely cut the required data;

6. Built-in temperature measurement unit, automatic temperature compensation, reducing sensor temperature drift;

7. Powerful interface protection and anti-power reverse connection function;

8. Excellent lightning protection and anti-static performance (±60kV/600W);

9. Sealing level: IP68 dust and water proof level;

10. Water pressure resistance: 2Mpa (can be used for a long time at 200 meters underwater);

3. Fixed inclinometer industry application

Landslide monitoring; foundation pit monitoring; highway slope; tailings monitoring;

4. Fixed inclinometer technical parameters

Measuring axis number3-axis
Resolution0.001°
Measurement accuracy0.005
Range±90°
Operating voltageDC5-30V
Working current<5mA
Hardware InterfaceRS485 interface
Communication ProtocolStandard MODBUS protocol
DimensionsDiameter 28mm, length 810mm
Product Material304 Stainless Steel
Product Weight5kg
Operating temperature-40℃-+85℃
Sealing gradeIP68
Water pressure resistance2MPa (200m water pressure)
