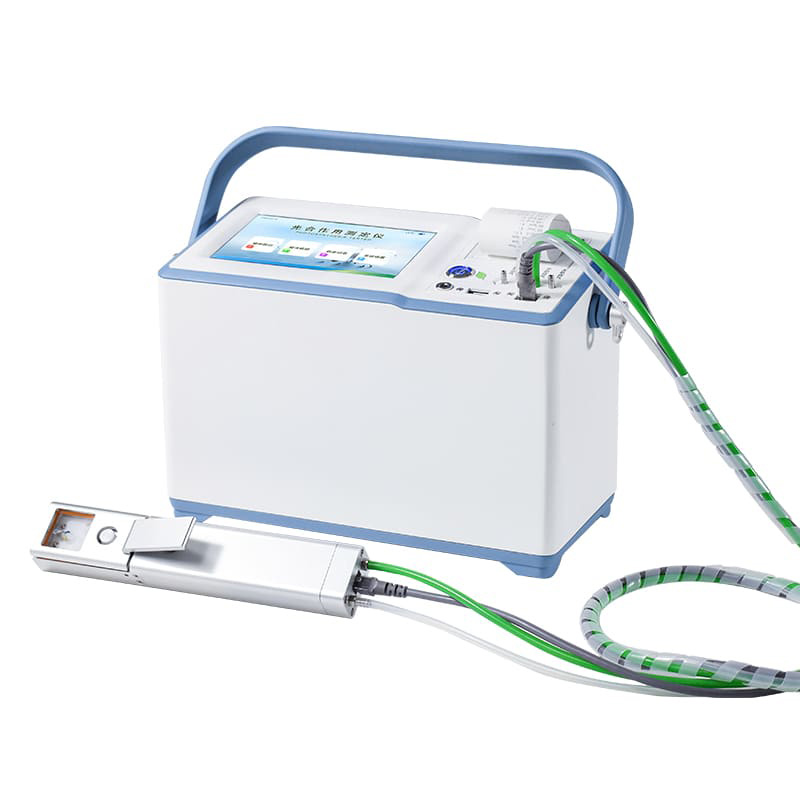

Photosynthesis Analyzer
Model:FT-GH2
Brand:fengtu
Related products
Product details
Photosynthesis Analyzer is an instrument used to measure the photosynthetic rate, respiration rate, transpiration rate and other physiological indicators of plant leaves.Photosynthesis Analyzer is an experimental instrument for testing the photosynthesis of living leaves of plants in artificial climate chambers, greenhouses, greenhouses, fields, etc. The measurement content includes air CO2 concentration, ambient temperature and humidity, leaf room temperature humidity, leaf surface temperature, atmosphere Pressure, photosynthetically active radiation (PAR), leaf photosynthetic rate (Pn), stomatal conductance (Gs), leaf transpiration rate (Tr), intercellular CO2 concentration (Ci), water utilization efficiency (WUE), respiration rate (Rd) , Transpiration Ratio (TR), a total of 15 parameters, which can be used for scientific research such as plant growth physiology, photosynthetic physiology, stress physiology research, etc. The plant photosynthesis meter is suitable for agricultural scientific research, teaching, horticulture, grass industry, forestry and a wider range of fields.
Measurement parameters
Item | Range | Resolution | Error |
Air CO2 concentration | 0-3000μmol/mol(ppm) | 0.0005 | ≤3%FS |
Ambient temperature | 0-50℃ | 0.001 | ≤±0.2℃ |
Ambient humidity | 0-100%RH | 0.001 | ≤±1%RH |
Leaf chamber temperature | 0-50℃ | 0.001 | ≤±0.2℃ |
Leaf chamber humidity | 0-100%RH | 0.001 | ≤±1%RH |
Leaf surface temperature | 0-50℃ | 0.001 | ≤±0.2℃ |
Atmospheric pressure | 30-110kPa | 0.01 | ≤±0.06kPa |
Photosynthetically active radiation (PAR) | 0-3000μmol/(m2·s) | 0.001 | ≤±5μmol/(m2·s) |
Item | Unit | Resolution |
Photosynthetic rate (Pn) | μmol/(m2·s) | 0.001 |
Stomatal conductance (Gs) | mmolH2O/(m2*s) | 0.001 |
Transpiration rate (Tr) | mmolH2O/(m2*s) | 0.001 |
Intercellular CO2 concentration (Ci) | μmol/mol | 0.001 |
Water Utilization Efficiency (WUE) | μmolCO2/molH2O | 0.001 |
Respiration rate (Rd) | μmol/(m2*s) | 0.001 |
Transpiration ratio (TR) | μmolH2O/ mmolCO2 | 0.001 |
Instrument parameters
Item | Data |
Leaf chamber size | 3.3*3.3cm |
Master chip | ARM Cortex-A7, RK3288/4 core, clocked at 1.88Ghz |
Hardware memory | RAM 1G, ROM 16G |
Data interface | USB |
Power Adapter | 100-240V |
Charging instructions | Charging red light, fully charged green light |
Host size | 312.3*308.5*186mm |
Handle size | 250*30*48mm |
Weight | The main unit weighs 4kg and the handle weighs 0.7kg |
Features:
Intelligent: Using Android operating system and highly sensitive touch screen. Efficient human-computer interaction, real-time display of the measurement process, and better operating experience;
High stability: Dual-wavelength infrared carbon dioxide analyzer, adding temperature adjustment and atmospheric pressure measurement units, effectively improves the stability and accuracy of carbon dioxide. Effectively avoids the disadvantages of excessive fluctuations in carbon dioxide values due to temperature changes;
Multi-function: simultaneously measure photosynthetic rate, transpiration rate, intercellular carbon dioxide concentration, stomatal conductance and water use efficiency, as well as carbon dioxide concentration, relative humidity, photosynthetically active radiation, air temperature, leaf temperature, atmospheric pressure and other indicators;
Customization: Users can customize and edit experimental notes according to measurement needs, and can display Pn curve, Tr curve, light-photosynthesis curve and humidity-transpiration curve;
Data analysis: After the test is completed, multiple sets of data can be analyzed simultaneously to generate curve graphs in different colors to facilitate comparison of experimental data;
Large screen: 7-inch high-sensitivity touch screen, humanized operation interface, providing users with better data display.
Data export: Supports U disk copying of data, eliminating the need for driver plug-in and removal.
Long battery life: It can be used continuously in the field for 10-12 hours when fully charged.
Convenience: small size, light weight, portable with suitcase, convenient for single-person mobile testing;
